Canton Network App Quickstart FAQ

Contents

CN App Quickstart Frequently Asked Questions

CN App Quickstart Make target reference

LocalNet URLs

CN App Quickstart Frequently Asked Questions

System requirements & setup

Have the best technologies been selected for the CN App Quickstart?

The Quickstart is designed to help teams become familiar with Canton Network (CN) application development by providing scaffolding to kickstart development. Quickstart is intended to be incrementally extended by you to meet your specific business needs. Once you are familiar with the Quickstart, please review the technology choices and the application design to determine what changes are needed - technology and design decisions are ultimately up to you. Please be aware that the Canton Network Application Quickstart (CN App Quickstart) is a rapidly evolving work in progress.

What are the minimum system requirements to run CN App Quickstart LocalNet?

The CN App Quickstart requires Docker Desktop with at least 8 GB of memory allocated to run LocalNet properly. If your machine has less memory, consider declining Observability when prompted during setup.

Which browsers are supported for running CN App Quickstart?

Chromium browsers such as Chrome, Edge, and Firefox are recommended. Safari has known issues with local URLs and should be avoided. You may also use the same browser with one user in incognito mode and the other in standard mode.

How should I test Participant and User interactions on LocalNet?

For testing multiple users, use separate browsers or one browser in standard mode and another in incognito to avoid session/cookie interference.

Where can I install CN App Quickstart dependencies?

This repository uses direnv, nix, and docker-compose to provide development dependencies:

How do I authenticate on JFrog Artifactory?

To run the Quickstart App you need some binaries from Artifactory. If you don’t have authorization, [contact us](https://www2.digitalasset.com/contact-us-access-to-jfrog) to request Artifactory access.

How do I set up my JFrog credentials?

You need to create a ~/.netrc file with the following format:

machine digitalasset.jfrog.io
login <your-email>
password <your-api-key>

Set permissions with chmod 600 ~/.netrc

For more information see the Installation Guide.

Do I need to install Nix?

You can use the project files in the quickstart directory as a standalone project without nix, but you will need to provide binary dependencies manually. We do not offer guidance on how to do this, but you can find the required binaries in the quickstart/compose.yaml file.

Why is Nix-shell unable to download my SSL certificate?

The Nix prerequisite may introduce hurdles to installation if your enterprise runs behind a corporate proxy. If nix-shell is not found, then verify that /nix/var/nix/profiles/default/etc/ssl/certs/ca-bundle.crt contains your corporate CA.

CN, PQS, Daml Shell and other CN App Quickstart related services run on a user-supplied JVM. CN App Quickstart assumes that you have access to JVM v17+ with access to the internet. If your organization operates behind a web proxy then JVM may not have automatic knowledge of the corporate certificate. In these instances, JVM must be instructed to trust the certificate.

If Nix-related errors occur, verify that the correct certificates exist by looking at the log file.

$ sudo HOME=/var/root
NIX_SSL_CERT_FILE=/nix/var/nix/profiles/default/etc/ssl/certs/ca-bundle.crt
/nix/store/dfqs9x0l0r4dn7zjp1hymmv9wvpp9x2k-nix-2.26.2/bin/nix-channel
--update nixpkgs

If the log returns an error message such as:

error: unable to download 'https://nixos.org/channels/nixpkgs-unstable':
SSL peer certificate or SSH remote key was not OK (60)

Then the required corporate CA does not exist. Request your corporate CA from your organization’s tech administrator and merge the certificate into the Nix certs ca-bundle.crt.

If you need additional support, the Nix reference manual offers guidance regarding the order at which cert files are detected and used on the host, as well as environment variables to override default file locations.

Graham Christensen’s Determinate Systems blog offers a solution for Nix corporate TLS certificates problems on MacOS. The NixOS team forked this solution as an experimental installer that is stable on most operating systems.

Should I build with make or gradle?

The gradle daemon has been disabled to prevent parallel processing of transcodegen.

Gradle tasks had been known to create order and concurrency issues which caused files to get cleaned too early. Always prefer to use the make commands.

What version of the Java SDK does the CN Quickstart use?

The CN App Quickstart uses Java SDK version Eclipse Temurin JDK version 21. The Java SDK runs within the Docker container.

This information is specified in quickstart/compose.yaml and .env, respectively.

quickstart/compose.yaml

services:
backend-service:
   image: "eclipse-temurin:${JAVA_VERSION}"

.env

JAVA_VERSION=21-jdk

How do I resolve a “build failed with an exception failure”?

If make install-daml-sdk results in:

Task :daml:unpackDamlSdk FAILED
FAILURE: Build failed with an exception

Then you may have a corrupted daml-sdk snapshot. In most cases, deleting the identified tarball snapshot will resolve the issue in subsequent installation attempts.

This error may occur if make install-daml-sdk is interrupted.

A failure of this kind will end in:

https://digitalasset.jfrog.io/artifactory/sdk-ee/3.2.0-snapshot.20241031.13398.0.vf95d2607/daml-sdk-3.2.0-snapshot.20241031.13398.0.vf95d2607-macos-x86_64-ee.tar.gz to /Users/USER/Code/cn-quickstart/quickstart/daml/.sdk/daml-sdk-3.2.0-snapshot.20241031.13398.0.vf95d2607-macos-x86_64-ee.tar.gz

> Task :daml:unpackDamlSdk FAILED

FAILURE: Build failed with an exception.

\* What went wrong:

Execution failed for task ':daml:unpackDamlSdk'.

> java.io.EOFException

To resolve this error, copy the faulty .tar.gz file with directory path as shown in your terminal and rm it:

rm /Users/USER/Code/cn-quickstart/quickstart/daml/.sdk/daml-sdk-3.2.0-snapshot.20241031.13398.0.vf95d2607-macos-x86_64-ee.tar.gz

Note

USER in /Users/USER/ will display your username. Copy and paste from your terminal. NOT this FAQ.

Reattempt make install-daml-sdk.

How do I resolve Docker containers that fail unexpectedly?

Starting the CN App Quickstart while running Docker Desktop version 4.38.0 may result in java.lang.NullPointerException errors:

2025-01-31 15:12:55,705 ERROR [41 lity] FixedSizeBlockingPool [] Pool object could not be added due to exception:
java.lang.NullPointerException: Cannot invoke
"jdk.internal.platform.CgroupInfo.getMountPoint()" because "anyController" is null [ ] Exception in thread "Native-Process-Pool-1-17"

This error indicates that ORDS containers (an Oracle web client in Java) cannot properly load during startup.

First, verify that you are not running Docker Desktop version 4.38.0 (181591).

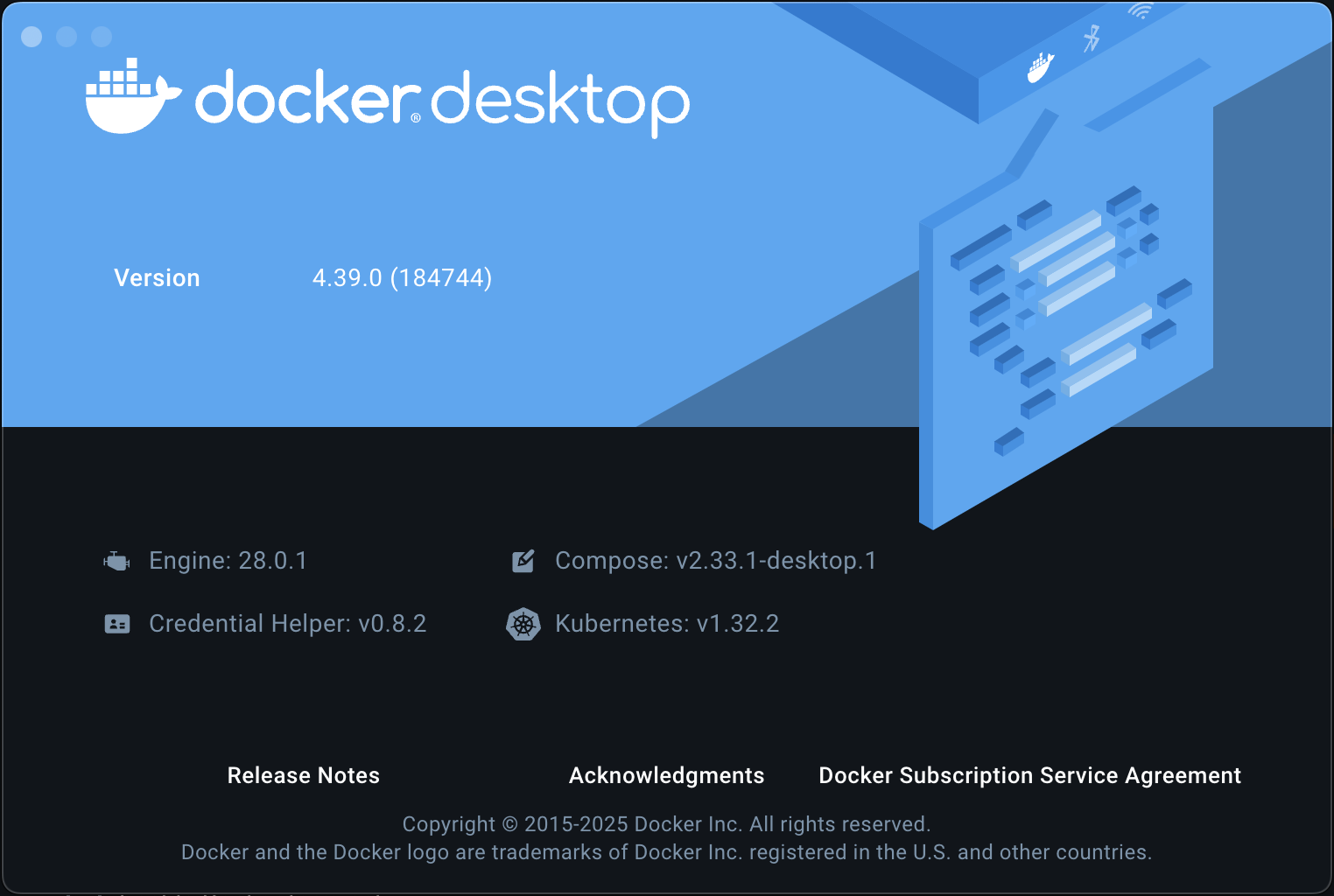

To view the version number, open Docker Desktop. In the top menu, select Docker Desktop -> About.

Docker Desktop version 4.39.0

If you are running Version 4.38.0 then upgrade Docker Desktop and make a new attempt.

If you’d like to learn more about this issue, visit JDK Bug System.

Common issues & troubleshooting

How can I check if my CN App Quickstart deployment is running correctly?

Use make status to see all running containers and their health status.

What should I do if containers show as “unhealthy” after startup?

The most common cause is insufficient memory allocation to Docker. Try:

  1. Increase Docker memory allocation to at least 8 GB

  2. Run make stop; make clean-all; make clean-docker

  3. Run make setup and turn off observability

  4. Restart with make start

How can I monitor system metrics?

You can use Grafana at http://localhost:3030/ to monitor system metrics if observability is enabled.

For more information see the Observability and Troubleshooting Overview.

What should I do if I need to completely reset my environment?

Execute the following commands in order:

  1. make stop

  2. make clean-all

  3. make setup (to reconfigure environment options)

  4. make start

How do I resolve “Couldn’t find env file” in make build?

If you receive an error message such as:

Couldn't find env file: /Users/USER/development/canton/cn-quickstart/quickstart/.env.local
make: \**\* [build-docker-images] Error 15

Run make setup to create the .env.local file.

Development & testing

How do I access the Daml Shell for debugging?

Run make shell from the quickstart directory. This provides access to useful commands like:

  • active - shows summary of contracts

  • active quickstart:Main:Asset - shows Asset contract details

  • contract [contract-id] - shows full contract details

How can I monitor application logs and traces?

The CN App Quickstart provides several observability options:

  1. Direct container logs: docker logs <container-name>

  2. Grafana dashboards: http://localhost:3030/

  3. Consolidated logs view in Grafana

Infrastructure & environment

What’s the difference between LocalNet and DevNet deployment?

LocalNet runs everything locally including a Super Validator and Canton Coin wallet, making it more resource intensive but self-contained.

DevNet is NOT included in the CN App Quickstart. However, CN DevNet connects to actual decentralized Global Synchronizer infrastructure operated by Super Validators and requires whitelisted VPN access and connectivity.

For more information see the Project Structure Overview.

What is ScratchNet?

ScratchNet is a persistent Canton Network environment that supports team collaboration while maintaining centralized control. It fills the gap between a single-developer LocalNet (constrained by one laptop’s resources) and a fully decentralized DevNet (maintained by Super Validators). Development teams typically deploy ScratchNet on a shared server to enable longer-running instances with persistent data storage across development sessions.

How can I find out the migration_id of DevNet?

Go to https://sync.global/sv-network/ and look for the migration_id value.

Do I need VPN access to use CN App Quickstart?

No. VPN access is only required for DevNet connections. The CN App Quickstart only provides a LocalNet deployment option, which does not require VPN access.

What will I need when I am ready to connect to DevNet?

To connect to CN DevNet you need access to a SV Node that is whitelisted on the CN. Contact your sponsoring Super Validator agent for connection information.

How can I operate a ``DevNet`` node?

Use the Docker compose DevNet [deployment from Splice](https://docs.dev.sync.global/validator_operator/validator_compose.html). We recommend using the Docker compose configuration for integration and long-term testing.

How does my team gain access to an enterprise license?

Get an Enterprise evaluation license by filling out our [contact form](https://www.digitalasset.com/contact-us?comments=I’m%20requesting%20access%20to%20jFrog). The evaluation license is good for six months and is renewable. Please allow 24 hours for the request to be processed. The evaluation license includes VPN access to DevNet.

How do I log in with Keycloak?

The CN App Quickstart uses Keycloak for authentication when OAUTH2 is enabled. If you have issues with logging in with Keycloak credentials, you may begin troubleshooting by running make status to verify the Keycloak service is running.

Keycloak should show healthy.

keycloak   quay.io/keycloak/keycloak:26.1.0 "/opt/keycloak/bin/k…"
keycloak   17 minutes ago Up 17 minutes (healthy) 8080/tcp, 8443/tcp, 9000/tcp

Keycloak credentials are set in oauth2.env with the following credentials:

Username: AUTH_APP_USER_WALLET_ADMIN_USER_NAME (e.g. app-user)
Password: AUTH_APP_USER_WALLET_ADMIN_USER_PASSWORD (e.g. abc123)

The Keycloak user must have the same ID as the ledger user’s ID. This should be reflected in the default behavior.

Best practices & common pitfalls

How should I handle multiple user testing in the local environment?

Best practices include:

  1. Use separate browsers for different users

  2. Follow proper logout procedures between user switches

  3. Be aware that even incognito mode in the same browser may have session interference

  4. Consider using the make commands for testing specific operations (e.g., make create-app-install-request)

Database & query access

What’s the recommended way to query ledger data?

The Participant Query Store (PQS) is recommended for querying ledger data.

CN App Quickstart Make target reference

Target

Description

build

Build frontend, backend, Daml model and docker images.

build-backend

Build the backend service.

build-daml

Build the Daml model.

build-frontend

Build the frontend application.

canton-console

Start the Canton console. Connects to the running app provider, app-user, sv ledgers.

capture-logs

Consumes Docker events and starts capturing logs to /logs directory for each service when a start Docker event is observed. Ideal for diagnostic purposes.

clean

Clean the build artifacts.

clean-all

Stop and remove all build artifacts, Docker containers and volumes.

clean-application

Like clean-docker, but leaves observability services running.

clean-canton- console

Stop and remove the Canton console container.

clean-docker

Stop and remove application Docker containers and volumes.

clean-shell

Stop and remove the Daml Shell container.

compose-config

Displays finalized configuration for each service initiated by make start. Dynamic environment variables e.g. APP_PROVIDER_PARTY are resolved at run time and not included in this output.

create- app-install-request

Submit an App Install Request from the App User participant node.

generate-NOTICES

Generate the NOTICES.txt file.

install-daml-sdk

Install the Daml SDK.

logs

Show logs of Docker containers.

restart

Restart the application services.

restart-backend

Build and restart the backend service.

restart-frontend

Build and restart the frontend application.

setup

Configure local development environment.

shell

Start Daml Shell. Connects to the running application PQS database.

start

Start the application and observability services if enabled.

status

Show status of Docker containers.

stop

Stop the application and observability services.

stop-application

Stop only the application, leaving observability services running.

tail

Tail logs of Docker containers.

update-env- sdk-runtime-version

Helper to update DAML_RUNTIME_VERSION in .env based on daml/daml.yaml sdk-version.

UI Opening Commands

Target

Description

open-app-ui

Open the Application UI in the active browser

open-observe

Open the Grafana UI in the active browser

open-sv-wallet

Open the Super Validator wallet UI in the active browser

o pen-sv-interface

Open the Super Validator interface UI in the active browser

open-sv-scan

Open the Super Validator Scan UI in the active browser

open -app-user-wallet

Open the App User wallet UI in the active browser

LocalNet URLs

URL

Description

http://localhost:3000

Main application UI

http://localhost:3030

Grafana observability dashboard (if enabled)

http://localhost:4000

Super Validator gateway - lists available web UI options

http://wallet.localhost:2000

Canton Coin wallet interface

http://sv.localhost:4000

Super Validator Operations

http://scan.localhost:4000

Canton Coin Scan web UI - shows balances and validator rewards

http://localhost:7575

Ledger API service

http://localhost:5003

Validator API service

Sponsoring Super Validators may offer different URLs for their DevNet services.
